DH series
Creative displays, Light up the city, Outdoor Fixed Led Display
- Energy Conservation
- Full Series Certification
- Profiled Aluminium
- Front & Rear Maintenance
- Support Right Angle And Arc Splicing
Creative displays, Light up the city, Outdoor Fixed Led Display

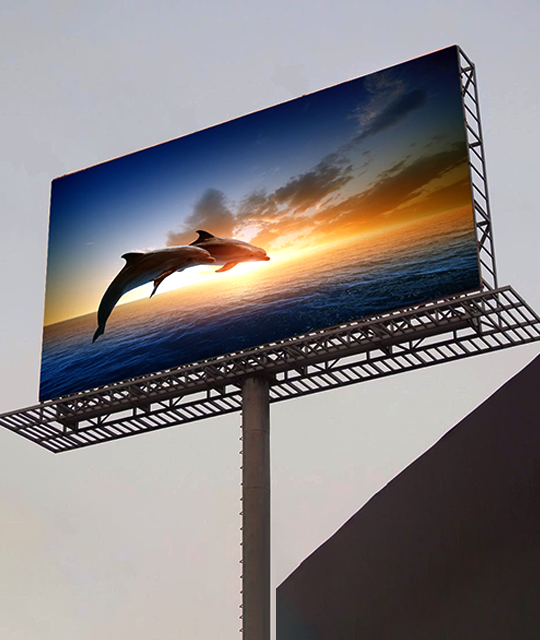

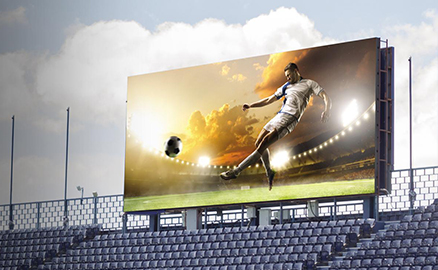

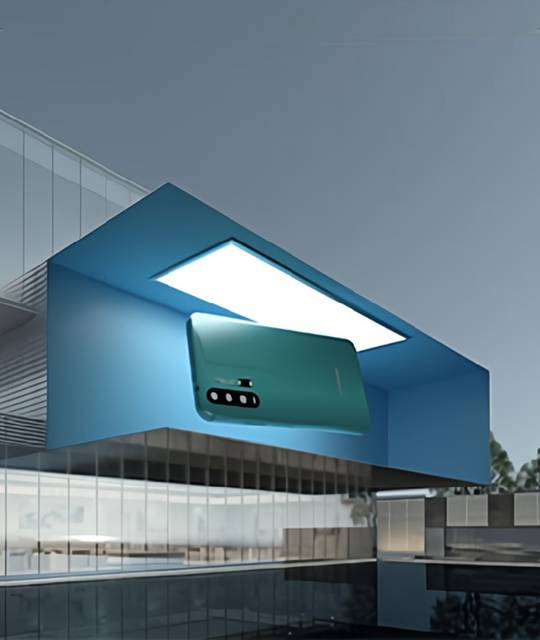

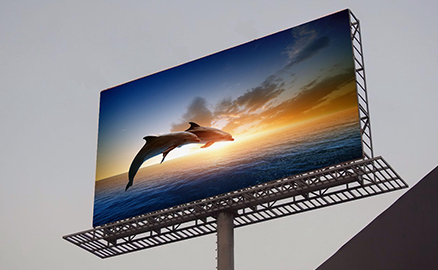

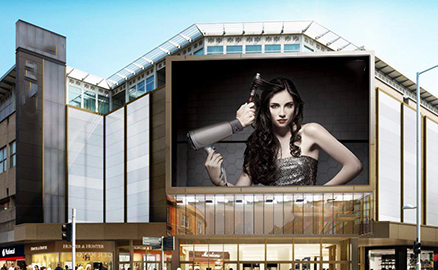

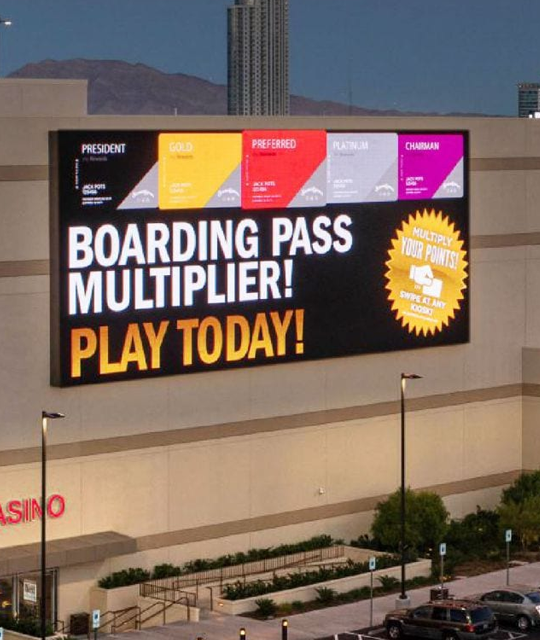

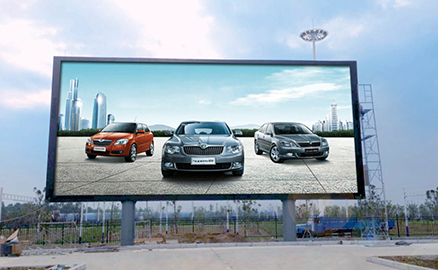

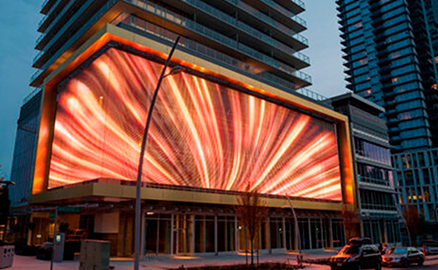

DH series products can not only be applied to scenes like advertising brands, Landmarks, street view billboards, digital billboards and transportation hub billboards, but it also can perfectly match the naked eye 3D creative visual effect, maximize empowering commercials.

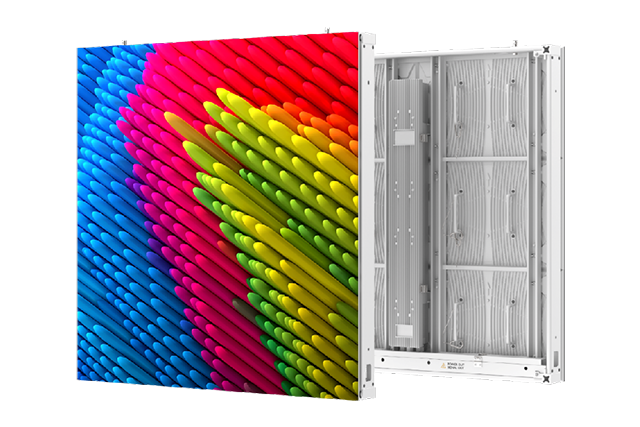

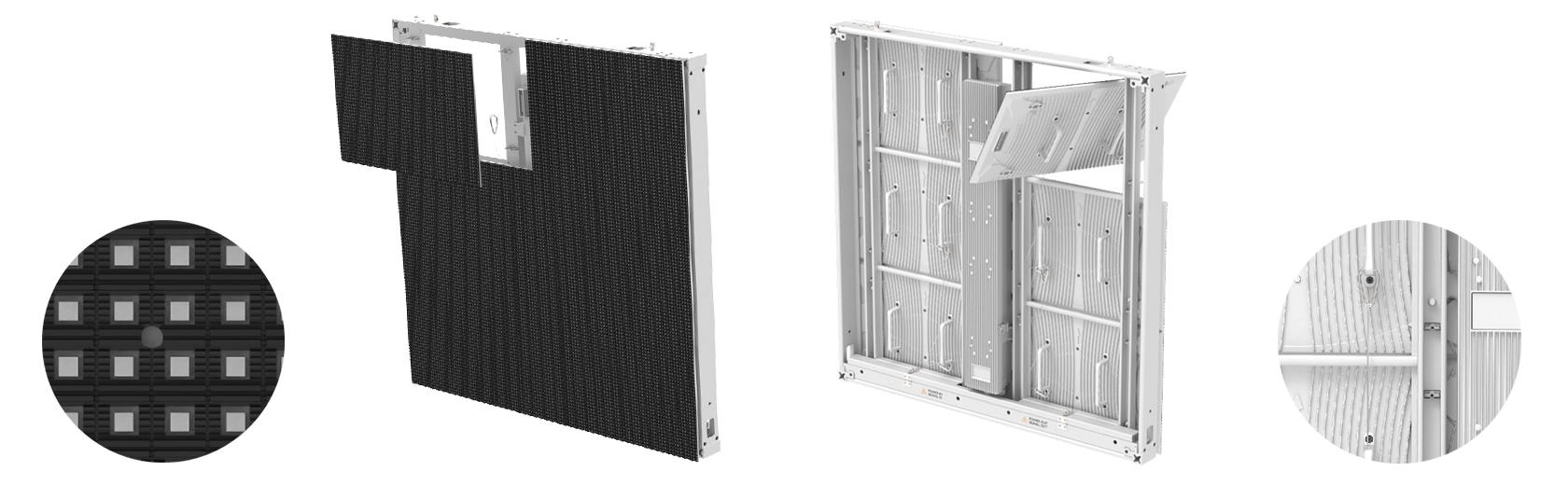

All aluminum cabinet, bottom shell and power box are fin design. After the lamp panel is filled with glue, the die-casting aluminum bottom case is tightened. The power box fits into the die-casting aluminum rear cover, and the bottom shell and power box are fin shaped to enhance heat dissipation effect, greatly extend service life.
Common cathode design. Common cathode has the characteristics of low temperature rise, low heat and low power consumption. It can greatly reduce heat, and reduce electricity bills, air conditioning and other equipment costs are exempted, the overall energy-saving effect is 30%, 300m² can save 100,000 yuan per year on average.

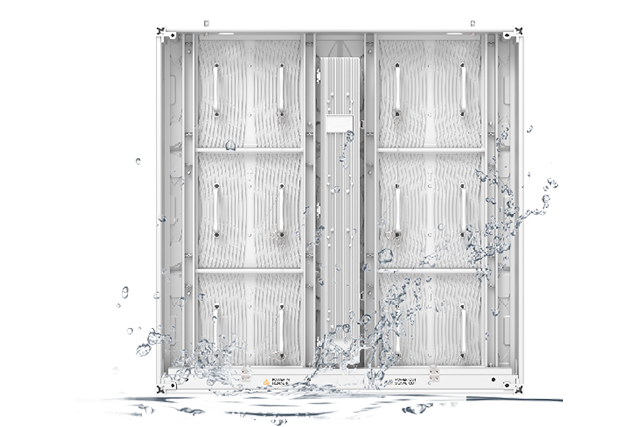

IP65 fully waterproof design, support outdoor naked assembly, resist typhoon, storm, high humidity, high temperature, low temperature and salt spray;

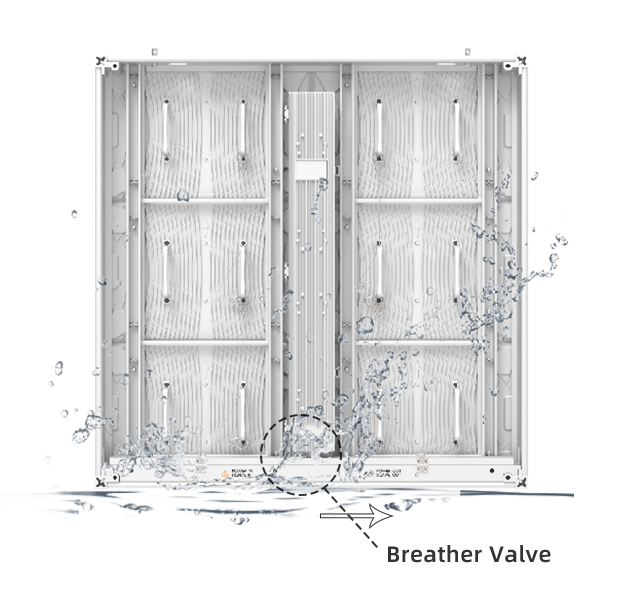

Breather valve design: the hot air generated inside the cabinet (module) will expand and be discharged through the breather valve, there is no pressure inside the module that can cause damage to the waterproof gel; When the cabinet (module) cools down, the outside air enters the cabinet through the breather valve, at the same time, the breather valve will be dehumidified;

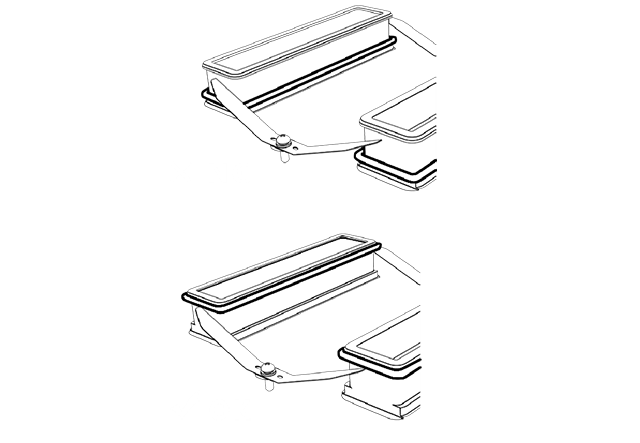

O-type sliding waterproof rubber ring is used for hard link of modules, tighten gradually when installing the module, thus enhance the waterproof effect.

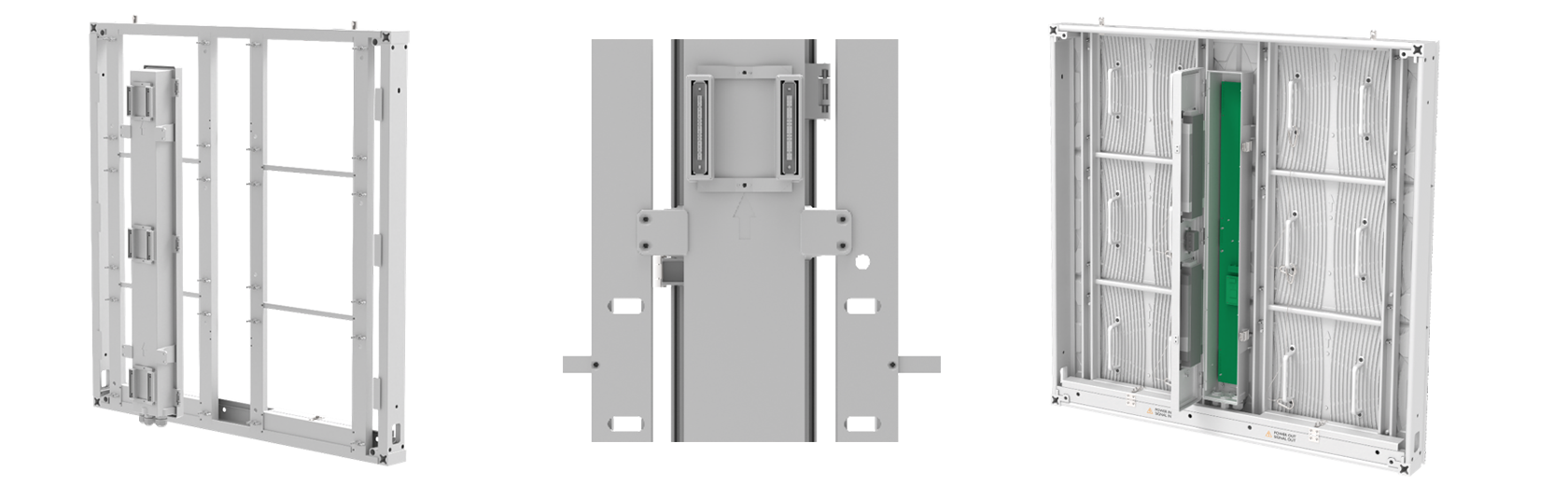

Module hard link, with interface elastic sheet and sliding rubber ring patent design.
Cabinets and modules are hard linked, the signal transmission is more stable, no lines are exposed, and the appearance is cleaner;
Not only does patented design of spring strip + sliding rubber ring ensure the flatness of the module, but also greatly enhances the waterproof performance.

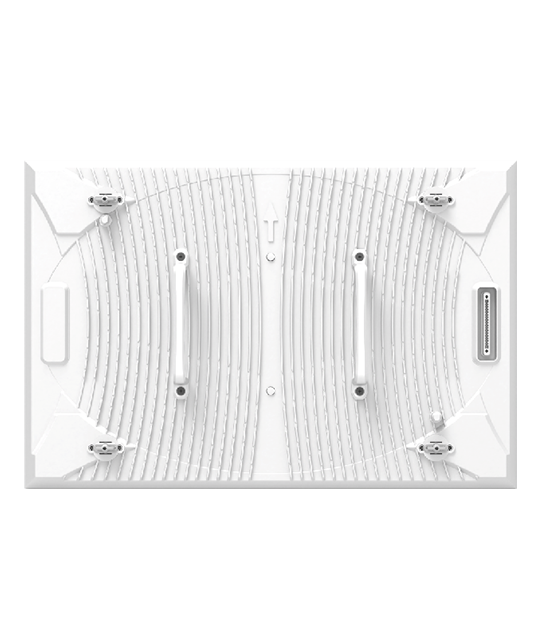

480x320 large module hard link design, double handles+Safety rope
Compared to small modules, large modules have more stable displays, so the signal is more stable, and the flatness is higher;

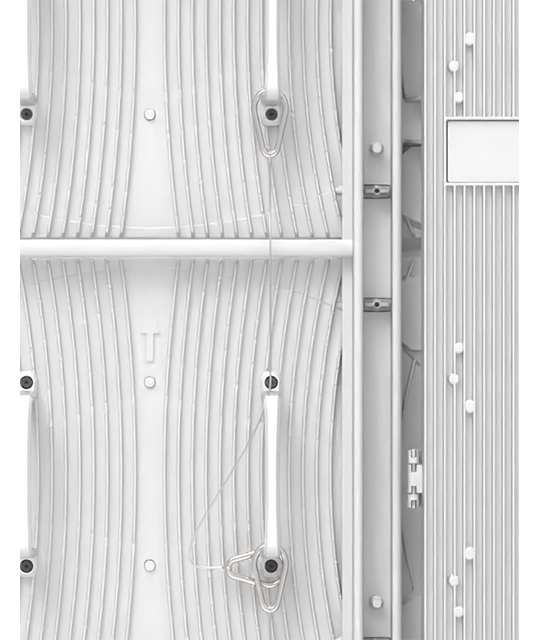

Double handles + Safety rope design, It is more secure when disassembling modules for maintenance, effectively prevent falling damage or hitting people.

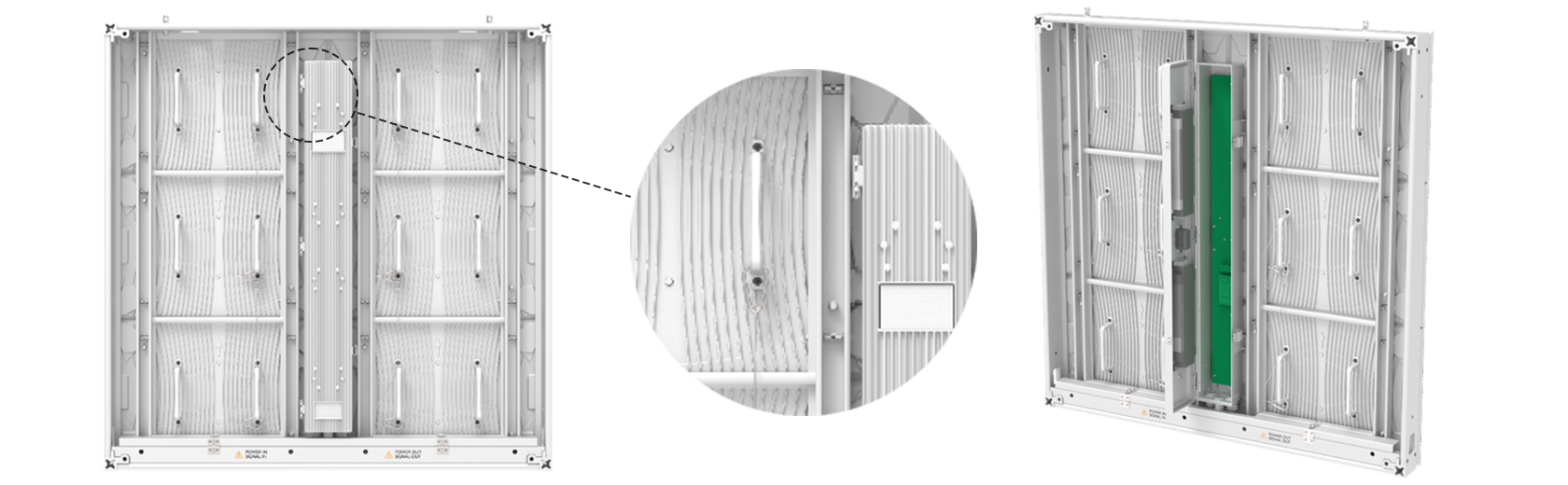

Both modules and power boxes support front and rear maintenance, support wall-mounted installation.

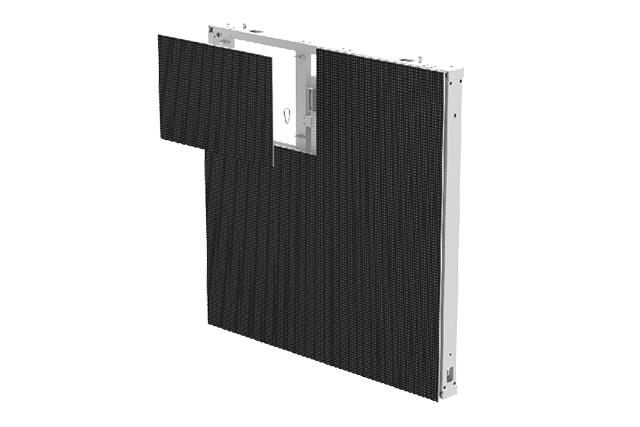

Module front maintenance: Use the M2.5 Allen wrench to rotate the module maintenance holes and release the Lock catch, the module can be removed from the front;
Module rear maintenance: tool-free,rotate the lock on the back of the module by hand, gently push the module forward. Adjust module angle, the module can be removed from the rear to maintain.
Both module and power box support front and rear maintenance, support wall-mounted installation;

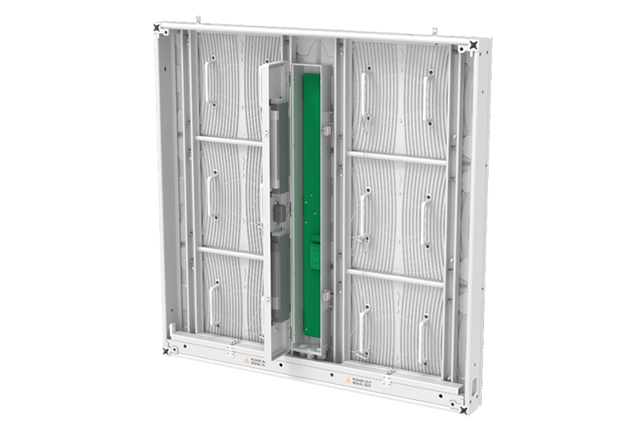

power box front maintenance: with all the modules removed, turn the front screw with a phillips screwdriver, the entire power supply box can be removed from the front.
power box rear maintenance: tool-free, unfasten the buckle on the back of the power box to open the power box.

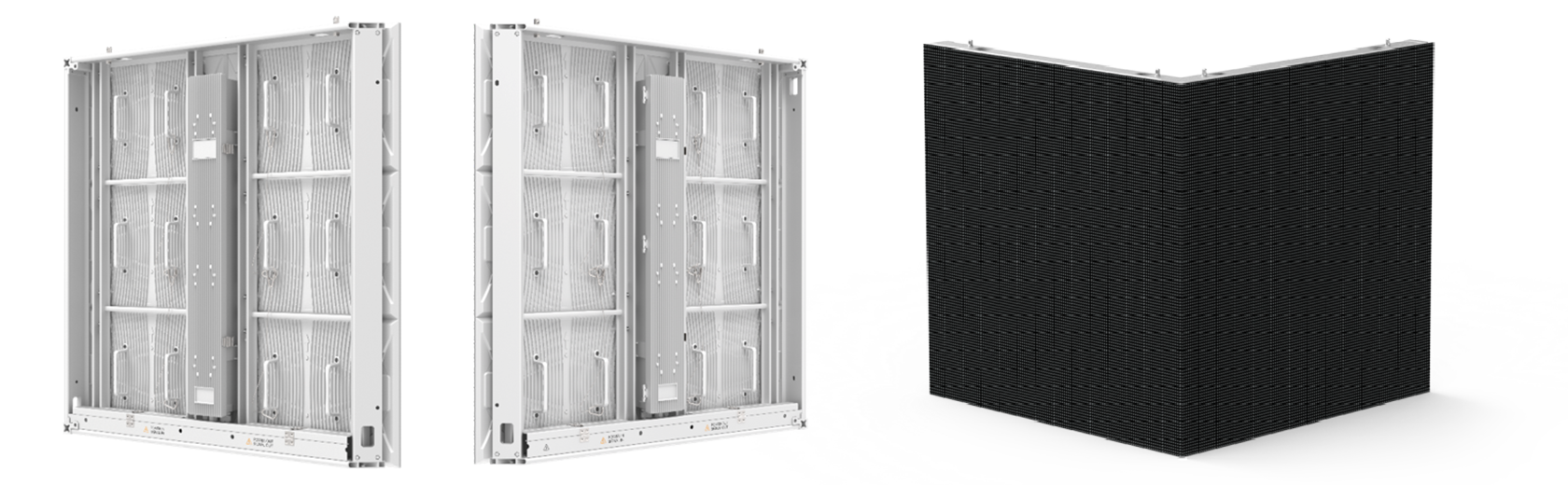

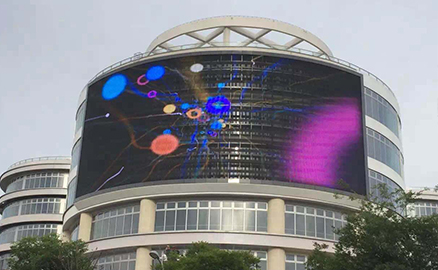

The conventional cabinet and the right angle can be spliced together, the whole screen supports right angle and arc splicing, perfectly match the naked eye 3D creative visual effect, enable creative marketing value maximization.
